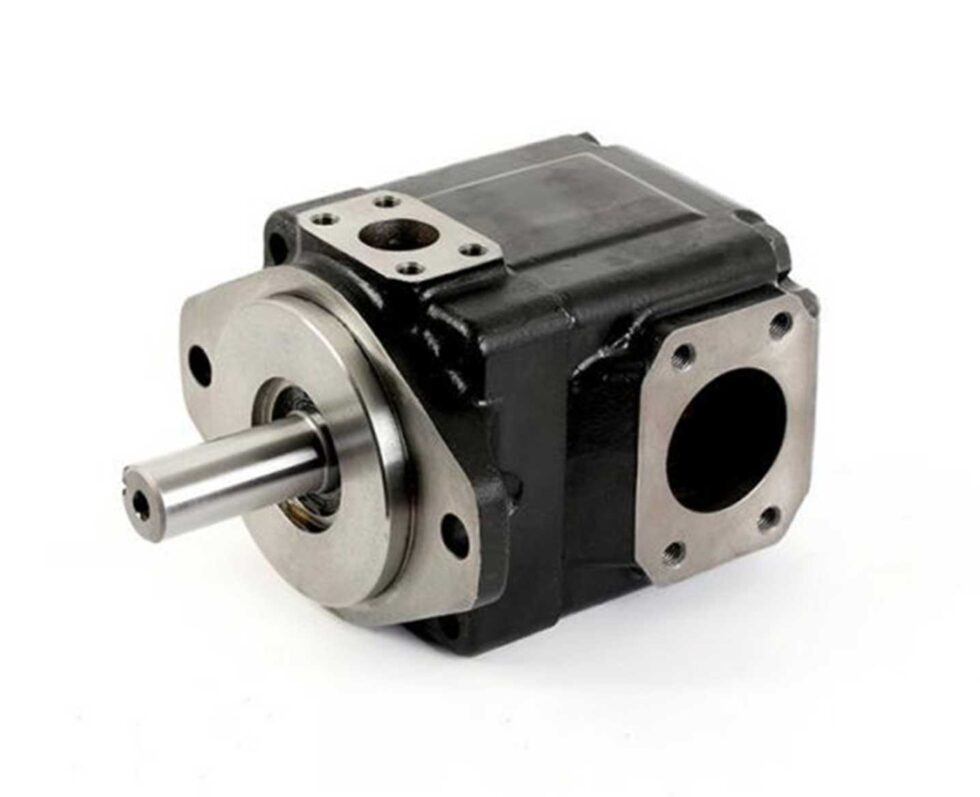

IH6DM Hydraulic Single Vane Pumps

Get a Price/Quote

Product Details:

Theory Hydraulic Vane Pump
Noise Level Low Noise Operation (68-72 dB)
Flow Rate 6 - 60 LPM
Discharge Pressure Max 21 MPa
Features Compact Design, High Efficiency, Easy Maintenance
Mounting Type Foot Mounted / Flange Mounted
Frequency 50Hz / 60Hz
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

IH6DM Hydraulic Single Vane Pumps Price And Quantity

Minimum Order Quantity 1 Piece

Rotation Direction Clockwise / Counter Clockwise
Port Connection BSP / NPT / SAE
Mounting Flange Standard SAE or ISO Mounting
Cooling Method Natural Air/Oil Cooling
Weight 14 kg - 42 kg, depending on model
Interchangeability Interchangeable with international brands
Oil Viscosity Range 12 - 100 mm2/s (cSt) at 40C

IH6DM Hydraulic Single Vane Pumps Product Specifications

Inlet/Outlet Threaded / Flanged
Priming Self-priming
Pressure Up to 210 Bar (3045 PSI)
Power 2.2 kW to 15 kW
Standard ISO 9001 Certified
Material Cast Iron / Alloy Steel
Frequency 50Hz / 60Hz
Fuel Type Hydraulic Oil
Mounting Type Foot Mounted / Flange Mounted
Discharge Pressure Max 21 MPa
Features Compact Design, High Efficiency, Easy Maintenance
Head Size Up to 150 m
Max Suction Up to 7 m
Pump Type Single Vane Pump
Working Temperature -20C to 80C
Caliber Various (Standard Sizes Available)
Control System Manual/Automatic
Speed Up to 1800 rpm
Usage Hydraulic System, Industrial Machinery
Theory Hydraulic Vane Pump
Seals Type Nitrile Rubber / Viton
Application Injection Molding Machine, Press, Construction Machinery
Suction Type Single Suction
Capacity Dependent on Model
Flow Rate 6 - 60 LPM
Noise Level Low Noise Operation (68-72 dB)
Structure Single Vane

Rotation Direction Clockwise / Counter Clockwise
Port Connection BSP / NPT / SAE
Mounting Flange Standard SAE or ISO Mounting
Cooling Method Natural Air/Oil Cooling
Weight 14 kg - 42 kg, depending on model
Interchangeability Interchangeable with international brands
Oil Viscosity Range 12 - 100 mm2/s (cSt) at 40C

IH6DM Hydraulic Single Vane Pumps Trade Information

Supply Ability 100 Piece Per Month
Delivery Time 5 Days

Product Description

Discover the preeminent IH6DM Hydraulic Single Vane Pumps, designed for optimal performance and cost-effective reliability. This wondrous range features clockwise/counter-clockwise rotation, multiple port connections (BSP/NPT/SAE), and a robust build of cast iron or alloy steel. Delivering a finest oil viscosity range and with ISO mounting options, these pumps ensure easy interchangeability with global brands. Enjoy high efficiency, low noise, and simple maintenance. Try now for affordable, self-priming solutions-ideal for hydraulic systems, industrial machinery, and construction worldwide. Experience engineering at its finest, with certified quality and versatile applicability.

Advanced Features & Wide Application

The IH6DM Hydraulic Single Vane Pumps boast a compact yet robust design tailored for industrial machinery, injection molding, presses, and construction equipment. With a low noise level and high energy efficiency, these pumps offer a seamless solution for complex hydraulic systems. Suitable for both manual and automatic control, their interchangeable build fits international standards, making them ideal for heavy-duty and frequent-use environments where longevity and performance are paramount.

Payment, Sampling & Export Logistics

Our flexible payment terms and clear sample policy are designed to accommodate varied business needs. Logistics are streamlined for timely shipment, ensuring that your order is efficiently handed over for global distribution. We offer secure packaging and reliable dispatch to major export markets, including Europe, Asia, and the Americas. Samples can be arranged upon request, reaffirming our commitment to customer satisfaction and transparency throughout the procurement process.

FAQ's of IH6DM Hydraulic Single Vane Pumps:

Q: How can I determine which IH6DM Hydraulic Single Vane Pump model is suitable for my hydraulic system?

A: To select the right model, evaluate your required flow rate, pressure, connection type, and mounting standard. Review machine capacities, oil viscosity needs, and installation space to choose the optimal variant.

Q: What are the main benefits of using IH6DM Hydraulic Single Vane Pumps in industrial applications?

A: These pumps offer high efficiency, low noise, compact design, self-priming operation, and easy maintenance, making them cost-effective and dependable for a wide range of demanding industrial uses.

Q: Where can these pumps be mounted, and what mounting options are available?

A: You can mount IH6DM pumps using standard SAE or ISO flanges, with choices of foot or flange mounting for seamless integration into most hydraulic machinery setups.

Q: What is the process for obtaining product samples and completing an order?

A: You may request samples through your dealer or distributor. Once approved, logistics arrangements are made for delivery, and the order is handed over to the specified export market efficiently.

Q: When is it ideal to use Nitrile Rubber versus Viton seals in the IH6DM Pump?

A: Use Nitrile Rubber seals for standard hydraulic applications; opt for Viton seals in high-temperature or chemically aggressive environments for prolonged durability.

Q: How does the interchangeability feature benefit users?

A: Interchangeability allows the IH6DM pumps to be substituted with international brands without major installation changes, streamlining maintenance and parts replacement.
